ROQPRINT OVAL PRO
Automatic Screen Printing Press
ON UP TO 56 PALLETS
The ROQprint OVAL is the ultimate screen printing machine. The oval design is expandable, efficient, and dependable, and holds registration with the same precision as a carousel press. Readily customizable with open operating stations at the ends allowing for easy access into the press, this press can be set up to do complicated multi-color jobs with integrated flashes and cool downs between each print head for maximum production efficiency.
Driven by a linked drive system, using servo motors to index the press and laser alignment, the ROQ OVAL holds the most precise registration in the market of 0.001 inch (0.025 mm) pallet accuracy. With 15 years of market experience, convertible print heads, print/peel technology, low maintenance, short setup times and the ability to expand as you grow, ROQ is the Global Leader in Oval Screen Printing Machines.
Colors: 1 to 20
Pallets: 16 to 56
Number of Optional Flash Cure Connection Units: 6 to 26
Print area: From 23 X 32 in. (600 x 800 mm) to 33 X 35 in. (850 x 900 mm) depending on pallet size
Capacity: Up to 950 garments per hour
Options
- Laser Markers
- Power and Control Connections for Flash are built into the machine base
- Flash Cure units
- Compatible with ROQ FLOCK
- Compatible with ROQ FOIL
- Skip Function

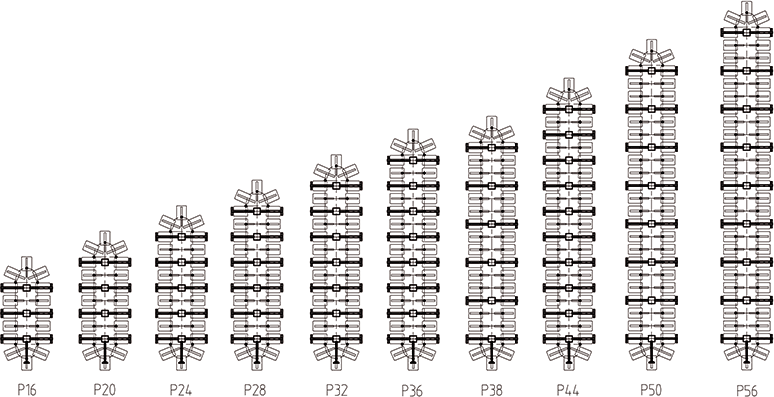

SPECIFICATIONS
| ROQprint OVAL PRO | P16 XL+ | P20 XL+ | P24 XL+ | P28 XL+ | P32 XL+ | P36 XL+ | P38 XL+ | P44 XL+ | P50 XL+ | P56 XL+ |
|---|---|---|---|---|---|---|---|---|---|---|
| Number of Colors (max.) | 20 | |||||||||
| Number of Pallets | 16 | 20 | 24 | 28 | 32 | 36 | 38 | 44 | 50 | 56 |
| Number of Flash Cure connection units (optional) | 6 | 8 | 10 | 12 | 14 | 16 | 17 | 20 | 23 | 26 |
| Maximum Print Size (mm/inch) | 600 x 800 / 20" x 32" | 850 x 900 / 33" x 35" * | |||||||||
* double index
